Remove Injector Solenoid Screws
- last edit: 20-Dec-2006
- comments: 0
-

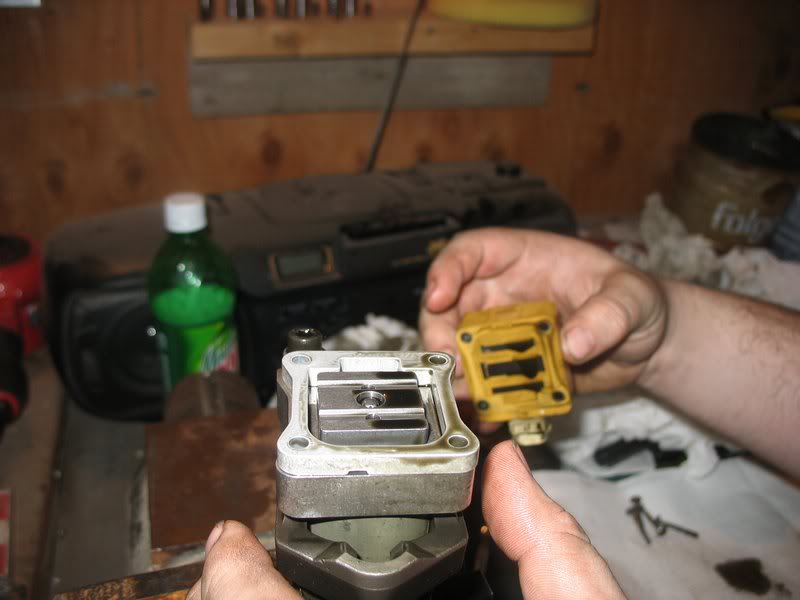

Remove Solenoid
- last edit: 20-Dec-2006
- comments: 0
-

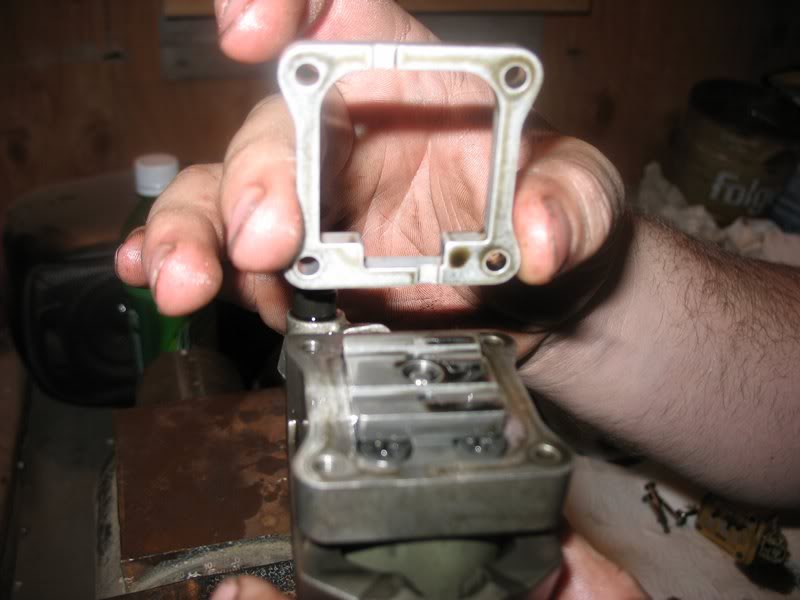

Remove aluminum spacer.
- last edit: 20-Dec-2006
- comments: 0
-

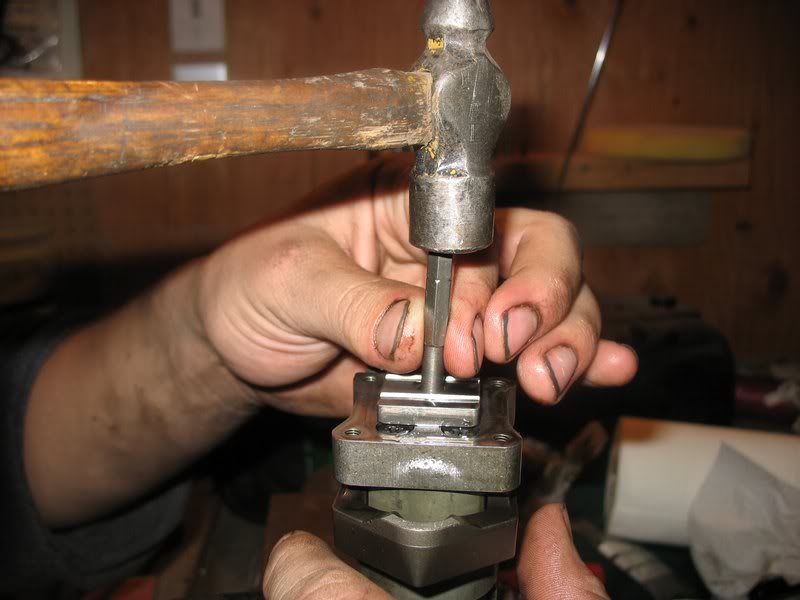

Remove Armature Screw
- last edit: 20-Dec-2006
- comments: 0
-
Secure Armature Plate
- last edit: 20-Dec-2006
- comments: 0
-

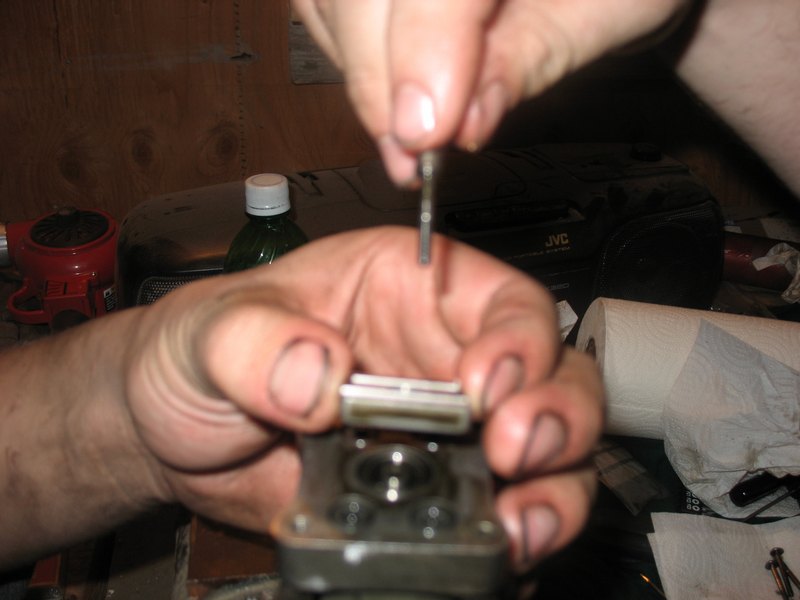

Remove screw and lift off armature plate.
- last edit: 20-Dec-2006
- comments: 0
-

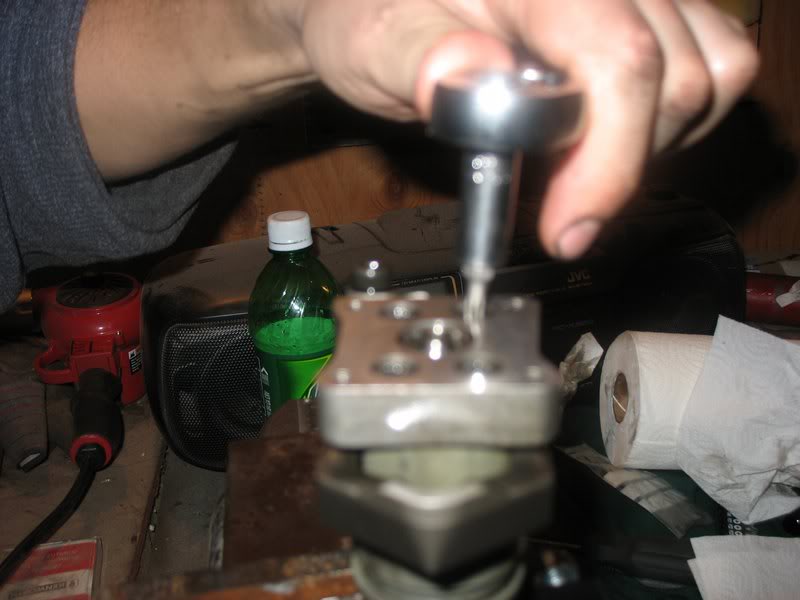

Remove screws from Oil Relief Plate
- last edit: 20-Dec-2006
- comments: 0
-

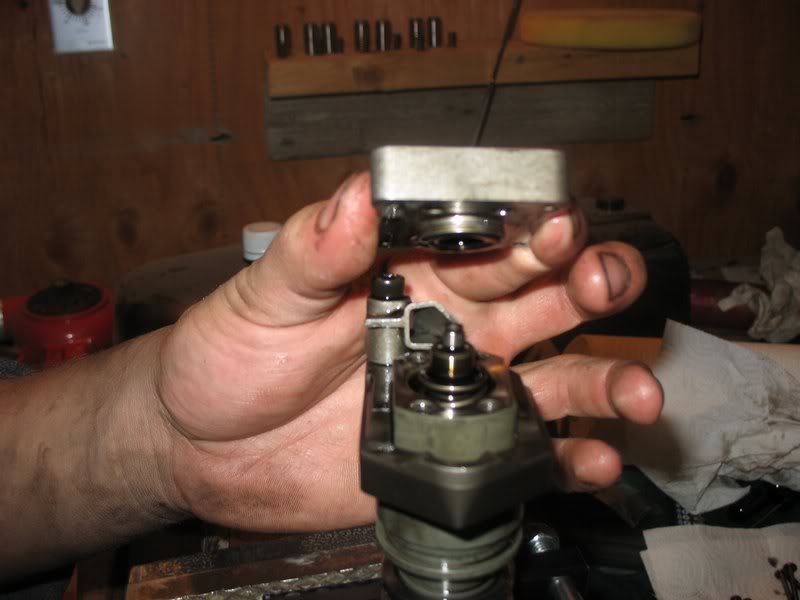

Lift off Oil Relief Plate
- last edit: 20-Dec-2006
- comments: 0
-

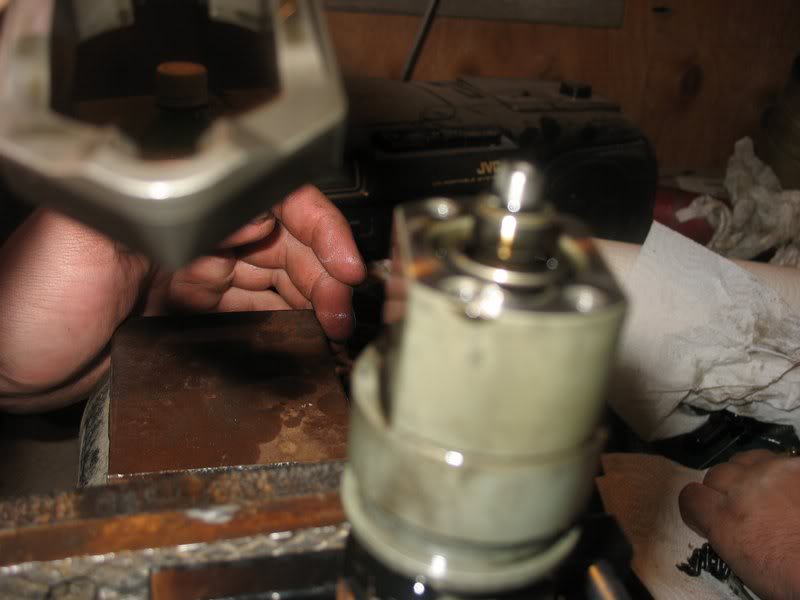

Lift off Injector Hold Down Clamp
- last edit: 20-Dec-2006
- comments: 0
-

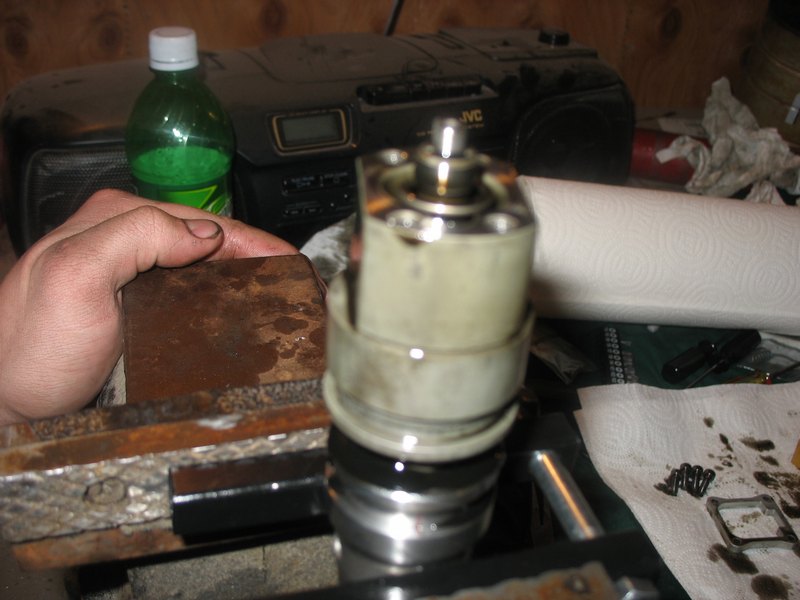

Injector with Clamp Removed
- last edit: 20-Dec-2006
- comments: 0
-
Lift out Poppet and Poppet Spring.
- last edit: 20-Dec-2006
- comments: 0
-
Pry apart Oil Relief Spacer and Shim
- last edit: 20-Dec-2006
- comments: 0
-
Oil relief shim, plate and spacer.
- last edit: 20-Dec-2006
- comments: 0
-
Remove O-ring from Oil Relief Plate
- last edit: 20-Dec-2006
- comments: 0
-
Unscrew Upper Injector Body
- last edit: 20-Dec-2006
- comments: 0
-
Lay the injector down on a clean shop towel and pull ap...
- last edit: 20-Dec-2006
- comments: 0
-
Replace the O-ring above the threads on the upper injec...
- last edit: 20-Dec-2006
- comments: 0
-
Installing the new O-ring
- last edit: 20-Dec-2006
- comments: 0
-
Remove Intensifier Piston from Upper Injector Body.
- last edit: 20-Dec-2006
- comments: 0
-
Shot of Intensifier Piston slid out of the Upper Inject...
- last edit: 20-Dec-2006
- comments: 0
-
Cleaning the Nozzle.
- last edit: 20-Dec-2006
- comments: 0
-
Remove Internal O-ring from Upper Injector Body.
- last edit: 20-Dec-2006
- comments: 0
-
Remove/Reinstal l Needle into Nozzle.
- last edit: 20-Dec-2006
- comments: 0
-
Insert dowels into spacer sleeve, and set spacer sleeve...
- last edit: 20-Dec-2006
- comments: 0
-
Insert Nozzle and Spacer Sleeve assembly into injector ...
- last edit: 20-Dec-2006
- comments: 0
-
Lower Body/Tip in Vice.
- last edit: 20-Dec-2006
- comments: 0
-
Set lift spacer into Space Sleeve with needle noze Plie...
- last edit: 20-Dec-2006
- comments: 0
-
Install Lift Spacer, 2nd shot.
- last edit: 20-Dec-2006
- comments: 0
