Cab Clearance Lights

shadowgray (Premium member) > albums

1 2 3
Views

Album Description:

Cab Clearance Light Installation

1 2 3

Album Info:

Album Stats:

  • Photos: 29
  • Views: 60,543
  • Downloads: 10

6 comments

Newest First | Oldest First

  • this was super helpful for the spacing- i have been looking for spacing info for a few weeks and havent had time to get by a dealer for help- thanks for posting.

    said of kaz1nc kaz1nc 2007.08.18 at 11:14:19 PDT

  • thanks

    said of topgun0727 topgun0727 2007.01.24 at 15:29:21 PST

  • I sealed the base of the lights with black GE Silicone II as the lights did not fit perfectly flush on the roof using the factory Ford measurements for the lamp locations. The measurements were taken from a truck at the dealership on the lot as well as from a friend who ordered his with the lamps installed by Ford. This will make the lamp base a semi-permanent install. The lens can be replaced with 3rd party clear or smoked flavors.

    said of shadowgray shadowgray 2007.01.23 at 21:37:43 PST

  • thanks! one more question. did you seal the lights with anything when you put them in?

    said of topgun0727 topgun0727 2007.01.23 at 18:21:39 PST

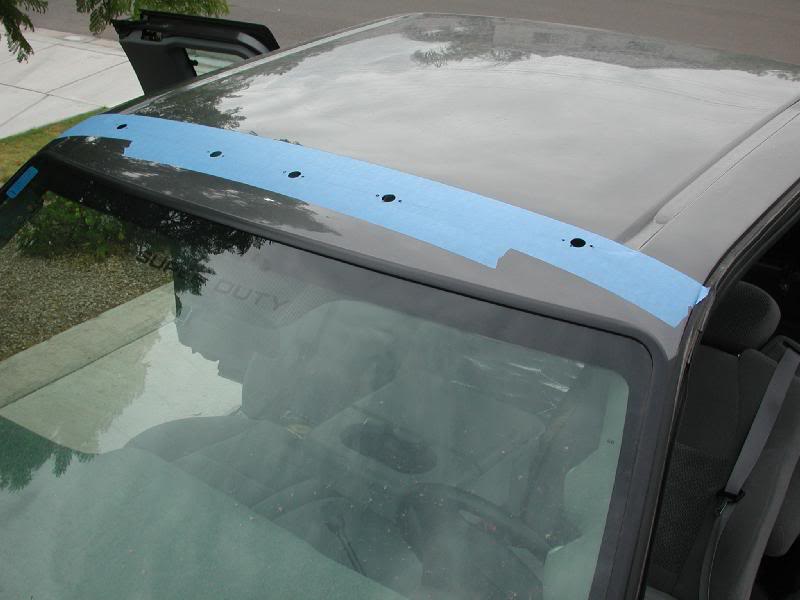

  • The spacing for the cab clearance lamps on the 2004 Super Duty are as follows and measured from center to center. From the center lamp, measure 8" twards each door to the center of the next lamp. From those positions, measure twards the doors 13" to the center of the outter most lamps. Remember, these are center to center measurements. O<---13"--->O< --8"-->O<--8" -->O<---13"--- >O Good luck!

    said of shadowgray shadowgray 2007.01.23 at 17:13:44 PST

  • i have been trying to find someone who knew how to install the roof lights and your knowledge has answered all of my questions but one. i need to know what the spacing between the lights is. if you could provide me that it would be greatly appreciated. Thank You, top gun

    said of topgun0727 topgun0727 2007.01.23 at 16:11:13 PST
